How Espresso Machines Work Explained Simply

Many people love espresso, but figuring out how espresso machines work can seem tricky at first. It’s easy to get confused by all the parts and steps involved. Don’t worry, though!

Key Takeaways

• Espresso machines use hot water and pressure to extract coffee flavor quickly.
• The process involves grinding beans, tamping them, and forcing hot water through the coffee.
• Key components include a water reservoir, pump, heating element, portafilter, and group head.
• Proper tamping is essential for even water flow and good extraction.
• Different machine types offer various levels of control and automation.
• Understanding these basics helps you make better espresso at home.

This guide will break it all down into simple, easy-to-follow steps. We’ll explore what makes that rich, creamy shot possible, and you’ll see it’s not as complicated as you might think. Get ready to understand the magic behind your favorite coffee drink.

How Espresso Machines Work Explained

The Heart of Espresso Making Water and Pressure

Espresso is all about speed and intensity. Unlike drip coffee, which takes minutes, espresso is brewed in about 20-30 seconds. This quick brewing relies on two main things hot water and pressure.

The hot water dissolves the coffee’s flavors, and the pressure forces this flavorful water through the finely ground coffee quickly. This combination creates the strong, concentrated coffee shot we know as espresso.

Getting the Water Ready

Every espresso machine starts with water. A water reservoir or a direct water line provides the water. This water then needs to be heated.

Most machines have a heating element, often a boiler or a thermoblock, that quickly heats the water to the perfect brewing temperature, usually between 195°F and 205°F (90°C and 96°C).

The temperature is super important. If the water is too cold, it won’t extract enough flavor. If it’s too hot, it can burn the coffee, making it taste bitter.

The machine’s job is to keep this temperature steady throughout the brewing process.

The Power of Pressure

This is where the “espresso” part really happens. Machines use a pump to create high pressure. This pressure is typically around 9 bars, which is about nine times the atmospheric pressure at sea level.

Think of it like squeezing water through coffee grounds with a lot of force.

This high pressure is what allows the water to extract so much flavor and oils from the coffee in such a short time. It also helps create the signature crema, that reddish-brown foam on top of a well-made espresso.

The Essential Parts of an Espresso Machine

To make this happen, espresso machines have several key parts working together:

Water Reservoir or Direct Connection

This is where the water for your coffee comes from. Some machines have a tank you fill, while others hook up directly to your home’s water supply. For home users, a removable tank is common and easy to manage.

The Pump

The pump is the engine of the machine. It draws water from the reservoir and pushes it through the system at high pressure. There are a few types of pumps, but they all serve the same purpose: to generate that strong brewing pressure.

Heating Element (Boiler or Thermoblock)

As mentioned, this part heats the water to the right brewing temperature. Boilers heat a larger volume of water and keep it hot, while thermoblocks heat water on demand as it flows through. Both aim for that precise temperature range for optimal extraction.

Group Head

The group head is where the magic really happens. It’s the metal part where the hot water meets the coffee. It’s connected to the boiler or thermoblock and has holes for the water to pass through evenly over the coffee grounds.

Portafilter and Basket

The portafilter is the handle you attach to the group head. It holds a metal basket, which contains the ground coffee. The basket has small holes that allow the brewed espresso to flow through into your cup.

The portafilter needs to lock securely into the group head to withstand the high pressure without leaking. The basket size and shape can affect how the espresso is brewed.

The Brewing Process Step-by-Step

Now let’s see how these parts work together when you make a shot:

1. Grinding the Coffee Beans

First, you need fresh coffee beans. They are ground very finely. The grind size is critical; it needs to be fine enough for the water to be forced through it slowly, but not so fine that it clogs the machine.

Grinding right before brewing makes a big difference in flavor.

2. Filling and Tamping the Portafilter

The finely ground coffee is then placed into the portafilter basket. The amount of coffee, often called a “dose,” needs to be just right. After filling, the coffee grounds are “tamped.” Tamping means pressing the grounds down firmly with a tool called a tamper.

This tamping creates a compact, even puck of coffee. A good tamp ensures that the water will flow evenly through all the coffee grounds. If the tamp is uneven or too light, water might channel through only parts of the coffee, leading to under-extraction in some areas and over-extraction in others.

This results in a less flavorful and unbalanced shot.

3. Attaching the Portafilter

Once tamped, the portafilter is locked into the group head of the espresso machine. This creates a tight seal.

4. The Extraction

When you start the brew cycle, the pump kicks in. It sends hot water from the boiler or thermoblock to the group head under high pressure (around 9 bars). This pressurized hot water is forced through the tamped coffee grounds in the portafilter basket.

The water rapidly extracts oils, aromas, and flavors from the coffee. This happens quickly, usually in 20 to 30 seconds. As the water passes through, it pulls the soluble compounds out of the coffee and turns into liquid espresso.

5. The Espresso Flows

The brewed espresso then flows through the bottom of the portafilter basket and out the spouts, directly into your waiting cup. You’ll see a rich, dark liquid with a layer of reddish-brown crema on top. This crema is formed by oils and carbon dioxide in the coffee, emulsified by the high pressure and temperature.

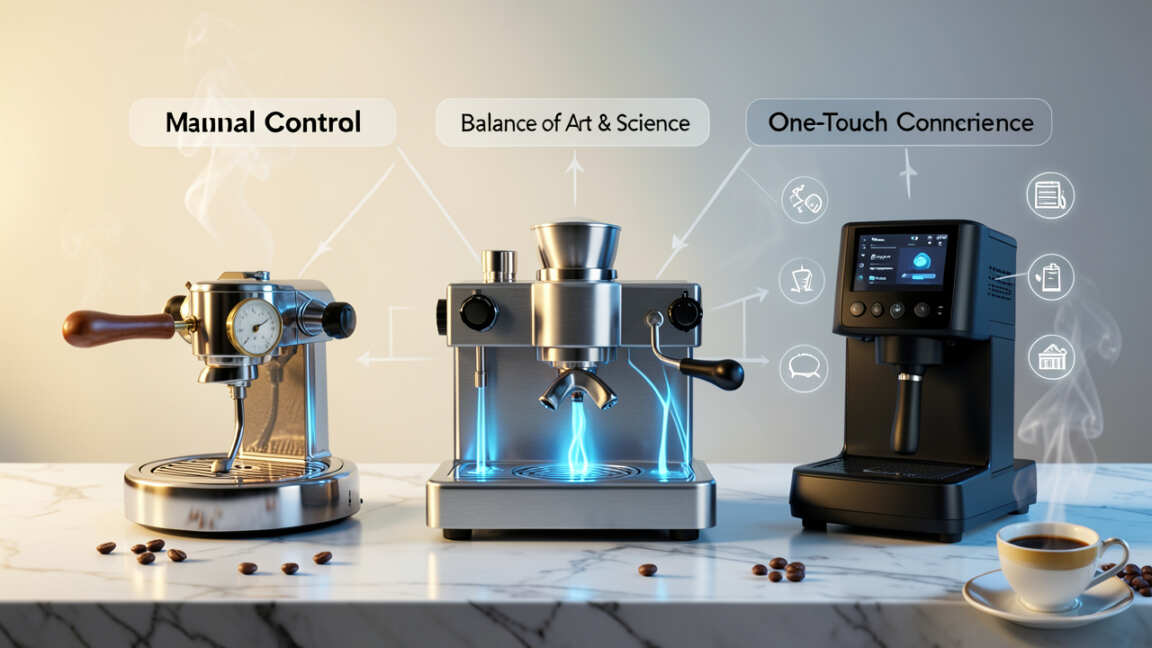

Types of Espresso Machines

Espresso machines come in different forms, each offering a different experience:

Manual Espresso Machines

These machines offer the most control. You are in charge of grinding, tamping, and even controlling the water pressure manually, often with a lever. They require skill but can produce excellent results.

Semi-Automatic Espresso Machines

This is the most common type for home enthusiasts. You grind and tamp the coffee yourself. The machine heats the water and provides the pressure.

You control the brew time by starting and stopping the pump yourself.

Automatic Espresso Machines

Similar to semi-automatics, but they automatically stop the flow of water after a pre-set volume or time. This simplifies the process, but offers less control over the extraction time.

Super-Automatic Espresso Machines

These machines do it all. They grind the beans, tamp the coffee, brew the espresso, and often even steam milk, all at the touch of a button. They offer convenience but minimal control over the brewing variables.

Tips for Better Espresso

Making great espresso is a skill that improves with practice. Here are a few tips:

• Use fresh, high-quality coffee beans.
• Grind your beans just before brewing for maximum flavor.
• Ensure your grind size is correct for your machine.
• Tamp your coffee grounds evenly and with consistent pressure.
• Keep your machine clean. Regularly backflushing and descaling will ensure it works properly.
• Experiment with your dose, grind, and tamp to find what tastes best to you.

FAQ Of How Espresso Machines Work Explained Simply

Question: What is the role of pressure in espresso making?

Answer: Pressure, typically around 9 bars, forces hot water through finely ground coffee quickly, extracting rich flavors and oils to create espresso and its signature crema.

Question: Why is water temperature important for espresso?

Answer: The right water temperature, usually between 195°F and 205°F, is crucial for extracting the best flavors from coffee without burning it or leaving it under-extracted.

Question: What is tamping and why is it done?

Answer: Tamping is pressing the ground coffee in the portafilter evenly and firmly. It ensures water flows uniformly through the coffee, leading to balanced extraction and better taste.

Question: What is crema?

Answer: Crema is the reddish-brown foam on top of espresso. It’s made of coffee oils and carbon dioxide, emulsified by the high pressure during brewing, and indicates a well-made shot.

Question: How often should I clean my espresso machine?

Answer: Regular cleaning, including backflushing and descaling, is important. Daily cleaning of the portafilter and group head is recommended, with deeper cleaning done weekly or monthly depending on use.

Final Thoughts

Understanding how espresso machines work reveals a thoughtful process of water, heat, and pressure.

You learned about the essential parts, from the pump to the portafilter, and how they combine to brew a concentrated coffee shot. You also saw the simple steps involved in extraction, from grinding to tamping.

This knowledge empowers you to appreciate your espresso more and even improve your home brewing.
